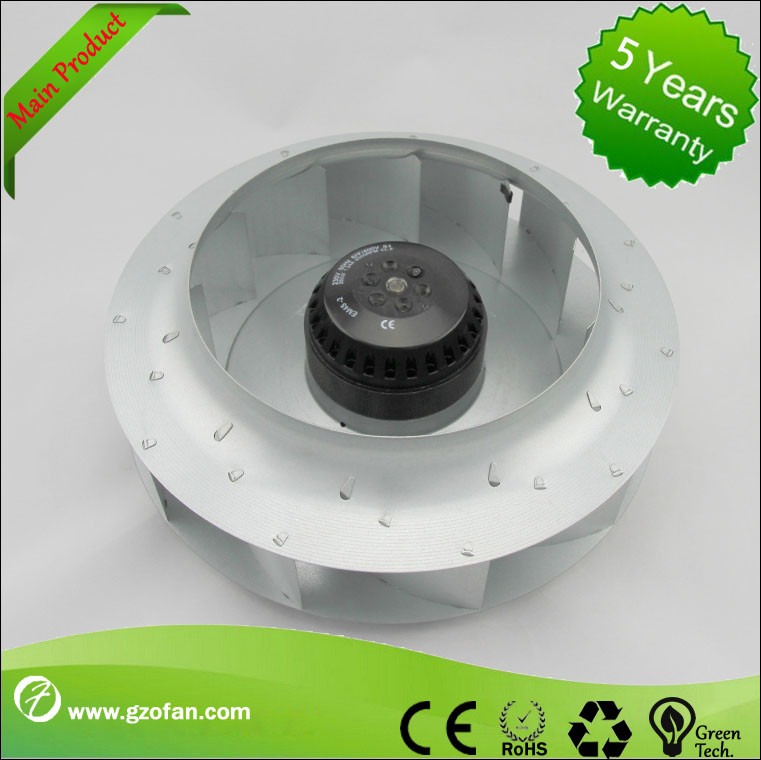

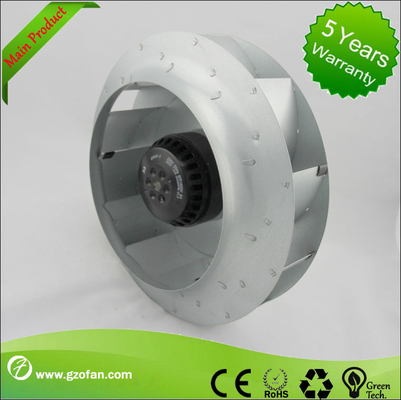

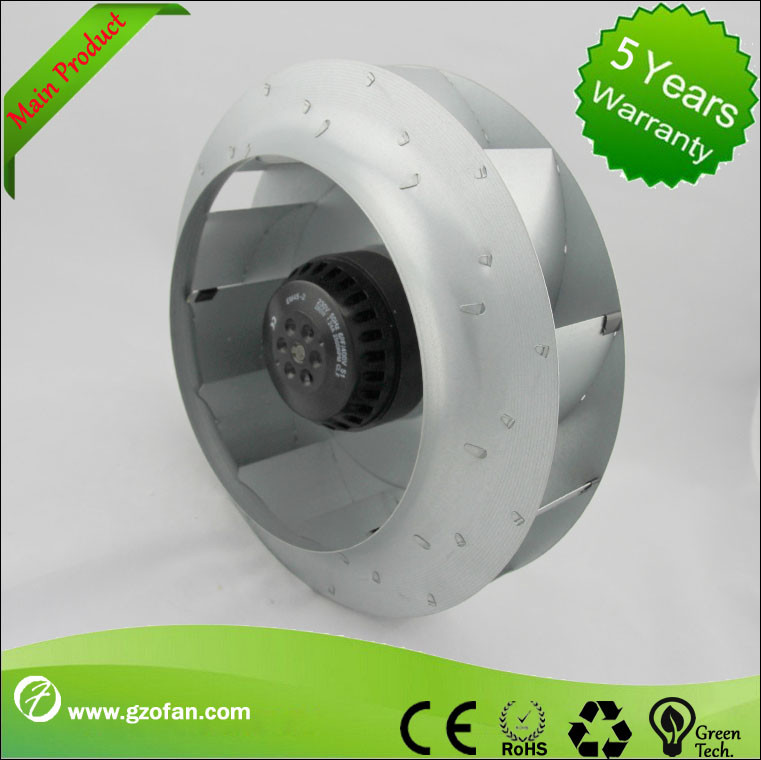

Advanced Roof Ventilation AC Centrifugal Fan Blower Backward Curved
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | KC35-2M-280B | Rated Voltage | 220V |
|---|---|---|---|
| Rated Current | 0.38A | Rated Speed | 1410RPM |
| Power Iput | 85W | Air Flow | 1400m³/h |
| Freqyebct | 50HZ | ||
| Highlight | ac exhaust fan,ac brushless fan |
||
Product Description
Roof Fans Ventilation Fan With Kc35-2m-280b For National Standard 3 C Wire
Specifications:
Model Number:KC35-2M-280B
Rated Voltage:220V
Rated Speed:1410RPM
Power:85w
Rated Current:0.38A
Air Flow:1400m³/h
Material:Gakvabused sheet steel
Type of protection: IP44
Approvals: CCC CE
Insulation class:B
Ball bearing:NSK
AC single-phase 230+-10% Vor three –phase 400+-10%v are alternative for voltage, and 50HZ or 60HZ for frequency
Extensive application---can be widely used in refrigeration and ventilation fields such as duct fans and roofing fans
The safety grade of this series is IP54,and the insulation classes are available among B,F and H,
The average longevity of service is over 24,000 hours
The products have got the CCC certificate in China and CE approval in Europe
Ventilation system in houses and buildings
Air-conditioning system in busses and yachts
FFU(Fan Filter Unit)and clean room system
Electronic oven, burner, constant temperature cabinet, medical instrument, sterilizer and desiccator
Various air curtains
