EC Backward Curved Centrifugal Fan With Exhaust Ventilation Fan PA66
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Voltage | 220VAC | Speed | 3000rpm |
|---|---|---|---|
| Power Input | 130W | Current Draw | 0.87A |
| Air Flow | 1200m³/h | Sound Pressure Level | 71db |
| Highlight | centrifugal backward curved fan,backward curved blower |
||
Product Description

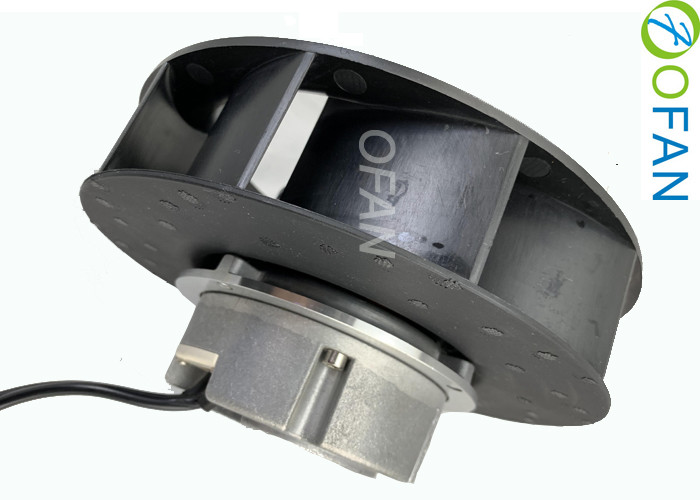

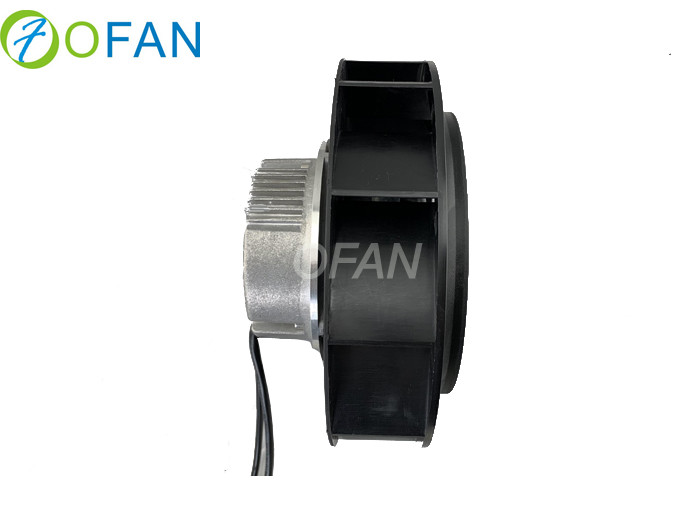

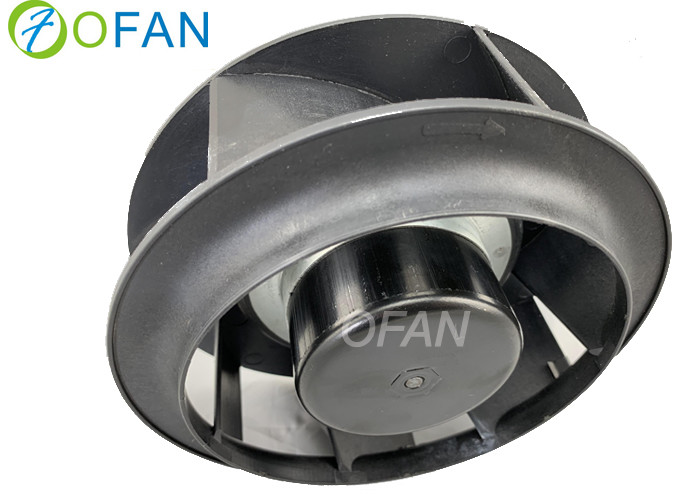

EC Backward Curved Centrifugal Fan With Exhaust Ventilation Fan PA66
Key Specifications/Special Features:
| Type | LD225C-230D3-01 |
| Nominal voltage | 230VAC |
| Speed | 3000RPM |
| Power input | 130W |
| Current draw | 0.87A |
| Air Flow | 1200m³/h |
| Sound pressure level | 71dB |
- Benefits over traditional fan and motor technology:
- Reduced energy consumption
- Significant noise reduction
- Stepless and infinite variable speed control
- No need for additional motor protection
- Remote monitoring via MODBUS
- Compact motors making them fully interchangeable with AC products for retrofit
- Fully integrated, mains input power supplies
- Fully sealed electronics
Features:
- Size: 220mm diameter X 44mm
- Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet.
- Fully integrated electronic commutation.
- Protect against reverse polarity and locking.
- Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet.
