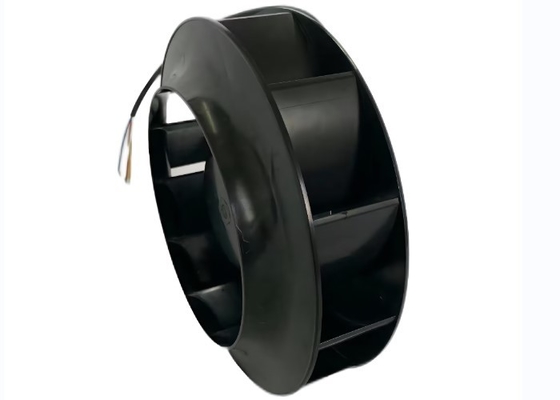

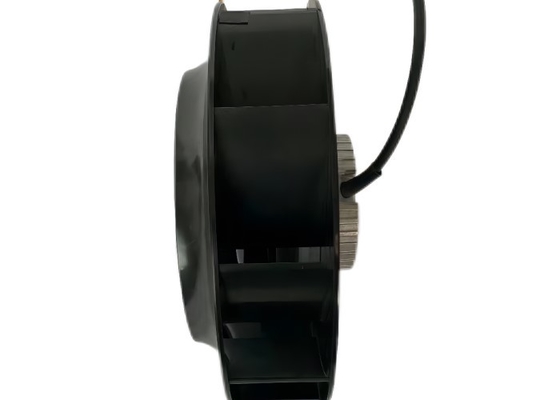

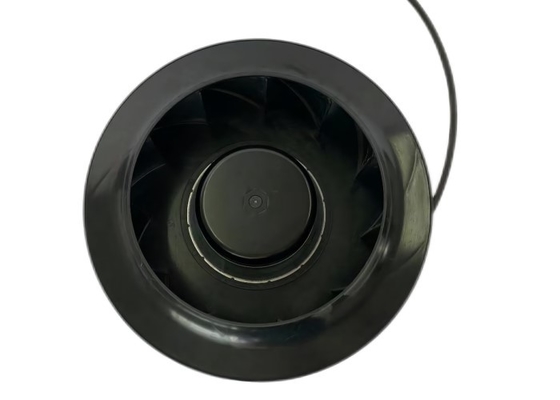

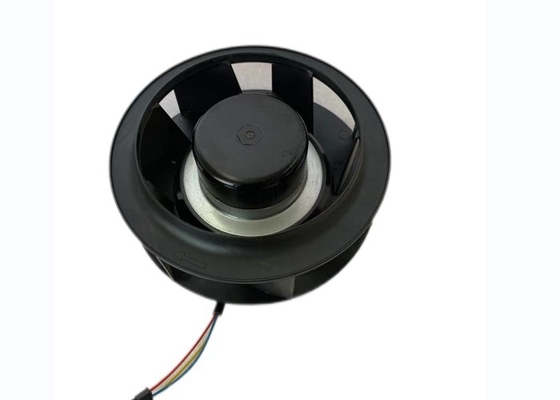

48V High Temperature Centrifugal Fan With Purification Filtering Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | LD133N-48D3-00 | Rated Voltage | 48V |
|---|---|---|---|
| Rated Current | 1.3A | Rated Speed | 4500RPM |
| Power Iput | 62.4W | Air Flow | 420m³/h |
| Highlight | centrifugal backward curved fan,backward curved blower |
||
Product Description
48V High Temperature Centrifugal Fan With Purification Filtering Machine
- Pressure-optimized blower
- shaded pole motor
- Impedance protected
Since most of the pressure build-up takes place in the impeller, there is generally no need for a scroll housing
Centrifugal fans have very good hydraulic efficiency and are ideally suited for high pressures Centrifugal fans are used in applications such as central air conditioning units or building ventilation systems
Features:
- Size: 133mm diameter x 91mm
- Material: spiral housing of fiberglass-reinforced plastic scroll housing base of aluminum sheet
- Fully integrated electronic commutation
- Protect against reverse polarity and locking
- Direction of air flow: axial air intake, centrifugal air exhaust out of the outlet
- Connection via single strands AWG 26, TR 64
- Bared and tin-plated
- Bearing: maintenance-free ball bearings
- Safety: thermally protected (auto restart)
- Weight: 740g
