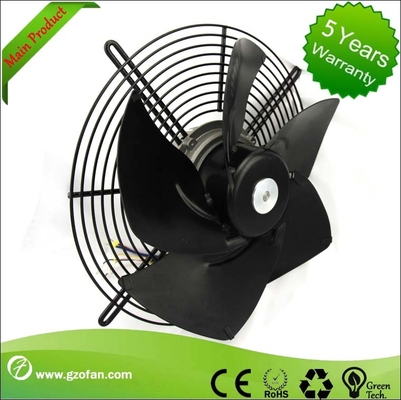

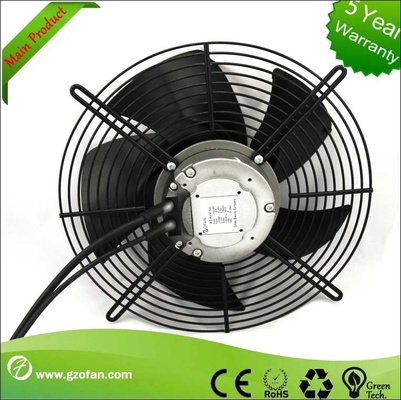

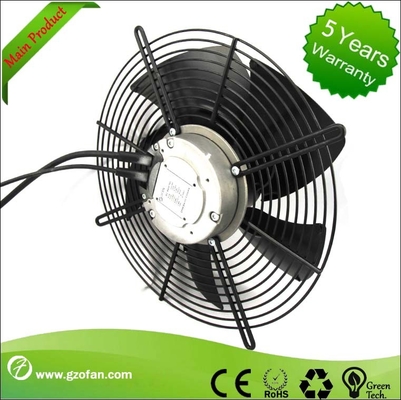

Industrial EC Motor Axial Fan Blower / Axial Cooling Fan For Protect Environment

a Low Running Cost Industrial Fan With Zw450c-230d3-00 For Proect The Environment

Model Number:ZW450C-230D3-00

Rated Voltage:230V

Rated Speed:1450RPM

Power:290w

Rated Current:1.38a

Air Flow: 5200m³/h

S Series

Material:Sheet steel

Type of protection: IP44

Approvals: CCC CE

Insulation class:B

Ball bearing:NSK

1． EC fans includes AC input driven brushless DC fan with integrated design of AC-DC transformation            circuit, the PFC circuit, the BLDC drive circuit, interface circuit. Due to the internal integration of the            AC-DC converter circuit, the consumption of power will be reduced to facilitate the design and                   application of the overall power system in customer.

2． Brushless DC external rotor motor belongs to non-mechanical brush(commutator)DC motor which            enforces the winding current commutation through electronic commutator (position sensing, non-                 position sensing),achieve the speed control function with PAM or PWM control

3． Enable the selection of different power levels thus to get the best match of price and performance             according to customers’load requirements

4.   Ventilation system in houses and buildings

5.   Air-conditioning system in busses and yachts

6.   FFU(Fan Filter Unit)and clean room system
