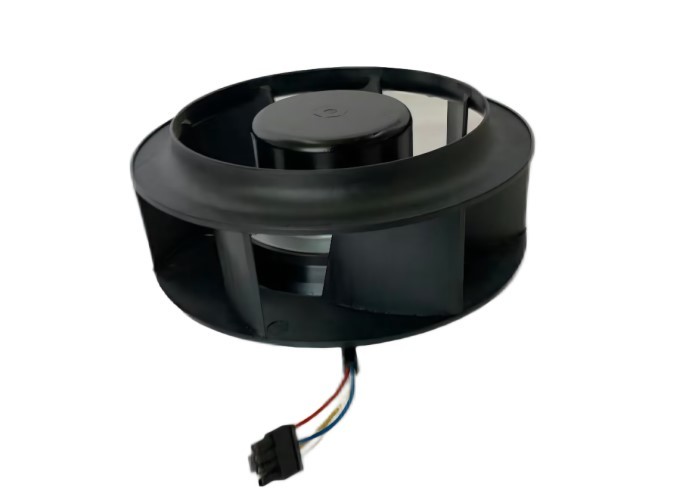

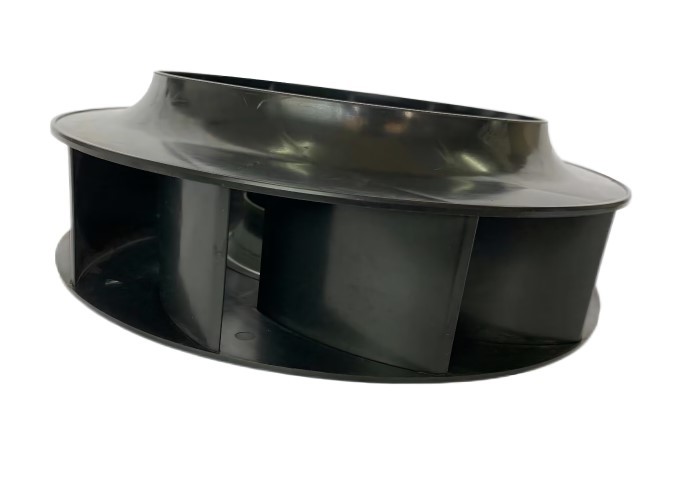

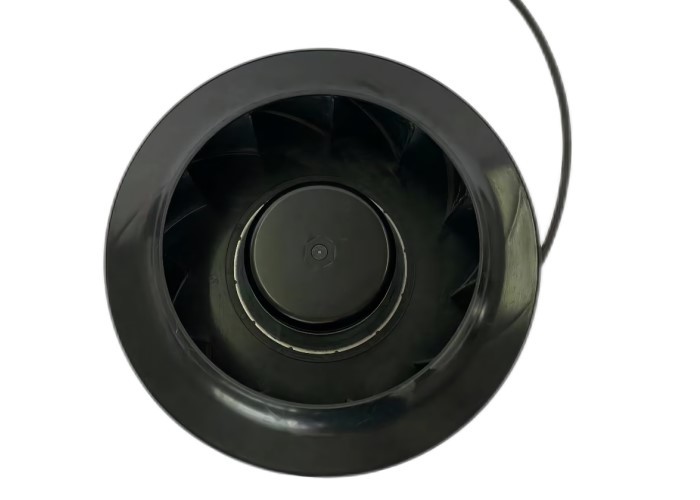

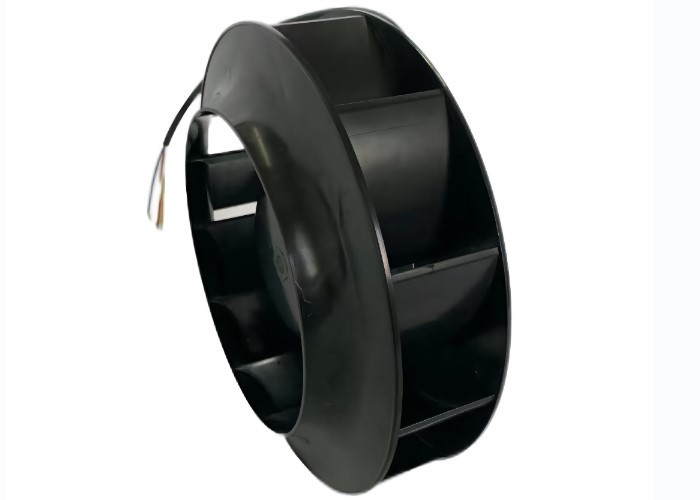

48V 175mm Backward Inclined Centrifugal Fan Replace Ebm-Past Telecom Plastic Impeller
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impeller Material | Propylene With Glass-fiber Reinforced, | Insulation Class | B |
|---|---|---|---|
| Air Flow | 764m³/h | Feature | High Performance |
| Highlight | EC Centrifugal Blower Fans,12V Centrifugal Blower Fans,Waterproof Centrifugal Blower Fans |
||
Product Description
Waterproof Ebm Papst EC 24V 12V Plastic Impeller Ec Small Centrifugal Blower Fans
EC Fan Introduction
EC(Electronically Commutation) motors, as built-in DC inverter driver three phase AC external rotor permanent magnet synchronous motors, its efficiency and low noise is considered to be ultimate fan energy technologies.
Core Technology Of EC Fan Controller
1. Sensorless vector control software
2. High-performance power electronic circuits
3. Security and reliability design(Standards, Certification)
4. Embedded design
| Listed Model |
Rated Voltage |
Operation Voltage |
Rated Current |
Power | Rated Speed |
Air Flow |
Air Flow |
Air pressure |
Noise Level |
| Part NO. | VDC | VDC | A | W | RPM | m³/h | CFM | mmH2O | dBA |
| LD175N-48D3-00 | 48 | 36~56 | 2.3 | 110 | 4200 | 692 | 408 | 48.4 | 81 |
| LD175N-48D3-01 | 48 | 36~56 | 1.2 | 57.6 | 3300 | 560 | 330 | 38.1 | 64 |
| LD175N-48D3-02 | 48 | 36~56 | 0.55 | 26.4 | 2500 | 365 | 215 | 18.1 | 60 |
| LD175N-28D3-00 | 28 | 18~32 | 4 | 112 | 4400 | 726 | 428 | 50.7 | 81 |
| LD175N-24D3-00 | 24 | 16~28 | 3 | 75 | 3800 | 626 | 369 | 43.7 | 70. |
| LD175N-48D3-01 | 24 | 16~28 | 2.5 | 60 | 3300 | 560 | 330 | 38.1 | 64 |
How does this affect energy efficiency?
Doubling the speed of a motor increases its power input by a factor of 8 so it’s very wasteful to run a fan faster than is required. If you can tailor the fan speed to match the demand, the potential for energy saving is huge. Even when compared to on/off operation, EC speed modulation is much more efficient.
EC fans can also contribute to increasing the overall efficiency of an application. In a cooling system for example, keeping the refrigerant pressure constant rather than having it rise and fall as fans switch on and off has been found to reduce the load on the compressor resulting in even greater energy saving.
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
