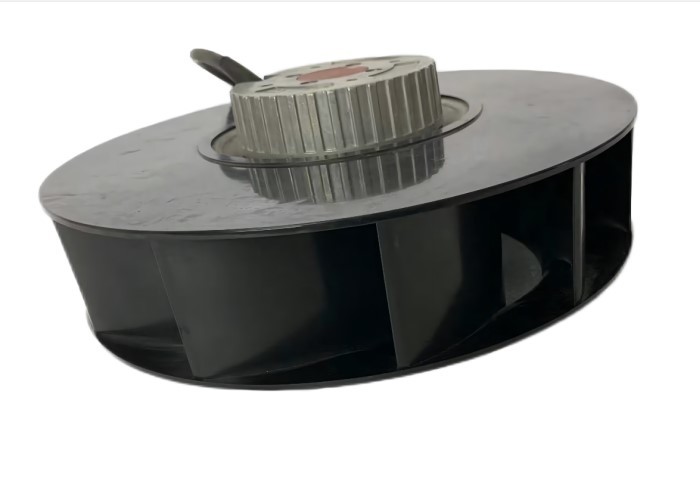

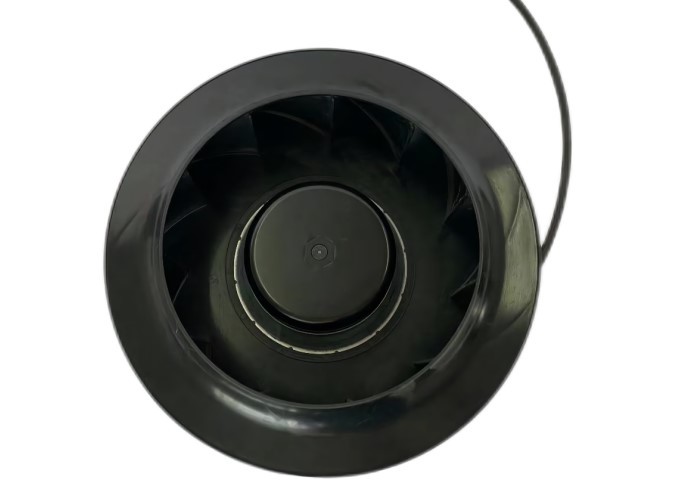

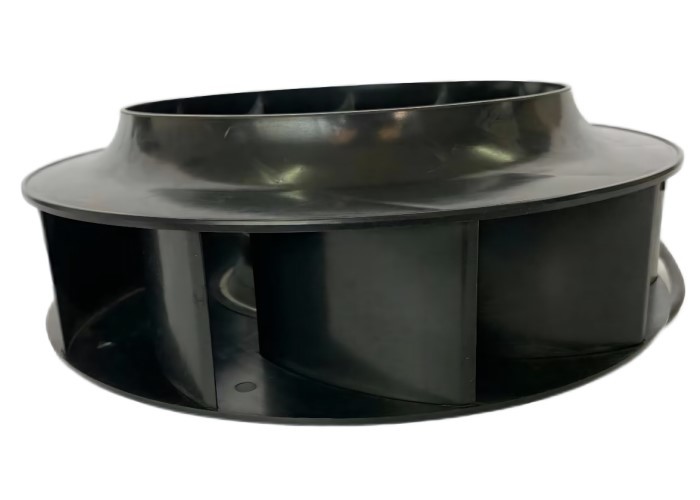

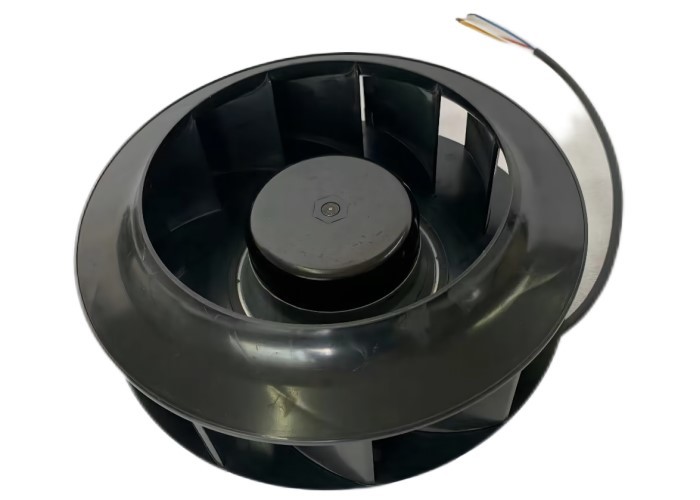

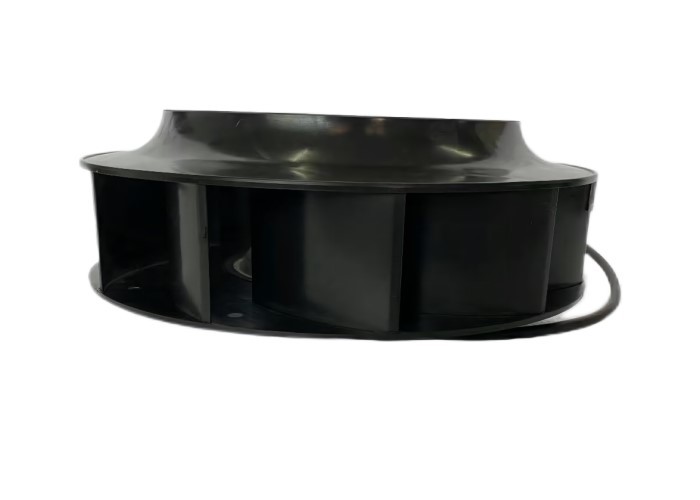

764m3/H High Pressure Blower DC Centrifugal Fan B Insulation Class
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Impeller Material | Propylene With Glass-fiber Reinforced, | Insulation Class | B |
|---|---|---|---|
| Air Flow | 764m³/h | Feature | High Performance |
| Highlight | 764m3/H DC Centrifugal Fan,B Insulation DC Centrifugal Fan,High Pressure Blower DC Centrifugal Fan |
||
Product Description
764m3/H High Pressure Blower Fan Dc Small Centrifugal Fan 12v B Insulation Class
DC technology is not new. Not to OFAN at least. We developed our first EC compact fan in 2008, 10 years before our competitors started to market their EC products and 8 years before environmental protection was even an issue. In this time we have improved, refined and extended the OFAN EC range into the universal, high technology and reliable product that it is today.
This means that OFAN EC gives you high performance, silent speed control and long life expectancy in a product which is the same size as the old, power hungry AC products it replaces.
| Listed Model |
Rated Voltage |
Operation Voltage |
Rated Current |
Power | Rated Speed |
Air Flow |
Air Flow |
Air pressure |
Noise Level |
| Part NO. | VDC | VDC | A | W | RPM | m³/h | CFM | mmH2O | dBA |
| LD175N-48D3-00 | 48 | 36~56 | 2.3 | 110 | 4200 | 692 | 408 | 48.4 | 81 |
| LD175N-48D3-01 | 48 | 36~56 | 1.2 | 57.6 | 3300 | 560 | 330 | 38.1 | 64 |
| LD175N-48D3-02 | 48 | 36~56 | 0.55 | 26.4 | 2500 | 365 | 215 | 18.1 | 60 |
| LD175N-28D3-00 | 28 | 18~32 | 4 | 112 | 4400 | 726 | 428 | 50.7 | 81 |
| LD175N-24D3-00 | 24 | 16~28 | 3 | 75 | 3800 | 626 | 369 | 43.7 | 70. |
| LD175N-48D3-01 | 24 | 16~28 | 2.5 | 60 | 3300 | 560 | 330 | 38.1 | 64 |
Permanent-magnet brushless DC motor within the rotor
The stator is driven by electronic switches (which replace the Carbon brushes), controlled by a microcontroller.
Electronic system (hall effect sensor or software is used to recognize the rotor position)
AC operated (230Volts Single phase or 380/480Volts 3phase, 50/60Hz)
Why choose us?
We belongs to the factory, so price we can give is based on factory cost, not trading cost.
We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory.
We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways.
EC technology advantages:
2.OFAN PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
How about delivery time?
a. Sample order below 10 pieces, we could make dispatch within 10 days.
b. Within four production lines we could supply 1000 fans each day.
What kind of payments do you support?
T/T, L/C, other kind of payment please contact with us
What's the MOQ?
piece sample fan. We believe our fan quality must satisfy customer.
Are you a factory or trading company?
We are a factory which specialized in produce external rotor motor about 10 years. We accept OEM or ODM
How do I know which model I should choose
Please tell us the fans pressure and ofan and size of fans’ diameter you need. We will study and suggest you the right model.
