190mm Backward Curved DC Centrifugal Fan For Electronic Cabinet Cooling

  • 190mm Backward Curved DC Centrifugal Fan For Electronic Cabinet Cooling
Place of Origin China
Brand Name OFAN
Certification CE ROHS
Model Number LD190N-24D3-01
Minimum Order Quantity Negotiable
Price negotiation
Packaging Details Standard Packing
Delivery Time 30 working days after receive the buyer's advance payment
Payment Terms L/C, T/T
Supply Ability 10000PCS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Backward Curved DC Centrifugal Fan Model LD190N-24D3-01
Rated Voltage 24v Operation Voltage 16-32DC
Rated Speed 3000RPM Rated Current 2.4A
Air Flow 580m³/h Application Electronic Cabinet Cooling
Highlight

brushless dc fan

,

dc ventilation fan
Leave a Message
Product Description

190mm Backward Curved DC Centrifugal Fan For Electronic Cabinet Cooling



DC Centrifugal Fan Introduction



Brushless DC fan saves the excitation of collector ring and brush, greatly simplifies the structure; not only improved the technology of motor but also greatly enhance mechanical reliability of motor operation and        increase the service life

2. Brushless dc fan use a permanent magnet excitation, eliminate the loss of induction motor excitation currents; realizing the small loss an high efficiency characteristics



DC Centrifugal Fan Parameters



Name: Backward Curved DC Centrifugal Fan Model: LD190N-24D3-01
Rated Voltage: 24v Operation Voltage: 16-32DC
Rated Speed: 3000RPM Rated Current: 2.4A
Air Flow: 580m³/h Application: Electronic Cabinet Cooling

DC Centrifugal Fan Specifications:

  1. Direction of rotation: Anticlockwise, see on the leads
  2. Insulation Class:F
  3. Bearing: Ball bearing
  4. Protection Type: IP42
  5. Product Confirmed to Standard: LVD EN 60950-1 EMC EN 61000-6-3, EN 61000-4-2 EN 61000-4-3
  6. Operating Temperature:-25℃~+60℃
  7. Weight:1.33kg

 DC Backward Curved Impellers Details

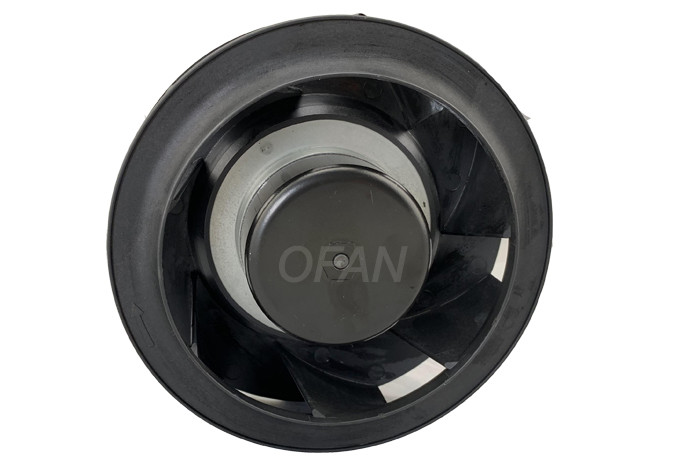

190mm Backward Curved DC Centrifugal Fan For Electronic Cabinet Cooling 0
